White Aluminium Oxide

Product Introduction

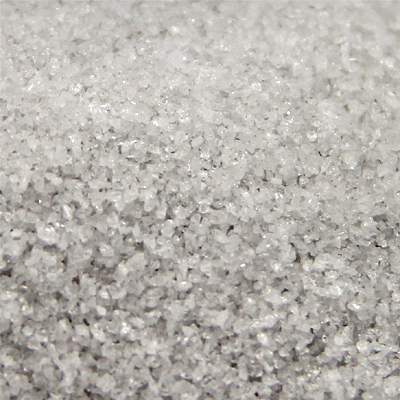

        White Fused Alumina (WFA), also known as White Aluminium Oxide, is made of aluminium oxide in an electric arc furnace at temperatures more than 2000oC. It is white and its hardness is higher, but its toughness is lower than the brown fused alumina. The abrasive tools made of it are suitable for the grinding of carbon steel, high speed steel and chilled steel. It can also be used as polishing materials and precision founding sand, spraying and coating materials, catalyst carrier, special ceramics and super refractory materials.

Main Application

        It’s widely used for the bonded abrasive tools such as grinding wheel, cutting wheels and coated abrasive tools such as abrasive paper, abrasive cloth. Its thermal properties make it an excellent material for use in the refractory products too.



Grit Size	Chemical Composition %(by weight)
	Al2O3 %	Na2O %	Fe2O3 %	SiO2 %
12#-80#	≥99.00	≤0.40	≤0.15	≤0.12
90#-150#	≥99.00	≤0.40	≤0.15	≤0.12
180#-220#	≥98.50	≤0.50	≤0.15	≤0.12
240#-1500#	≥98.50	≤0.40	≤0.15	≤0.12

Physical Property:



Basic minerals	Crystal size(um)	True density(ɡ/cm)	Bulk density(ɡ/cm)	Hardness(㎏/mm)
Alpha-Al2O3	600-1400	≥3.90	1.40-1.95	2200-2300

Standard: FEPA – F (bonded abrasive application), FEPA - P (coated abrasive application), JIS Standard.
Grit Available: F12 – F220 (Macro), F240 – F1500 (Micro powder) P24 – P220 (Macro), P240 – P2500 (Micro powder) JIS 12# – 4000#
For refractory: 0-1mm, 1-3mm, 3-5mm, 0-10mm, -70F, -100F, -325F, C-Dust.

Other grain sizes on requests are available.
